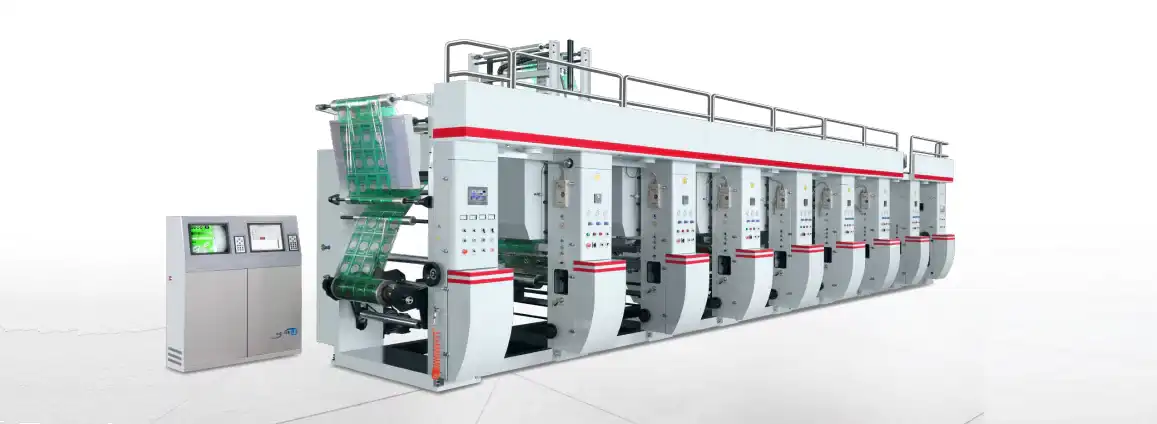

DASY-800/1100E Computerized Register Rotogravure Printing Machine

Main Technical Parameters:
ModelDASY-800E
DASY-1100E
Web Width
800mm
1100mm
Printing Speed
120m/min
120m/min
Print Cyl. Dia.
Φ100-350mm
Φ100-350mm
Rolling Material Dia.
Φ570mm
Φ570mm
Print Cyl. Cross Adjustable
30mm
30mm
Print Cyl. Longitudinal Adjustable
100°
100°
Registering Accuracy
±0.1mm
±0.1mm
Total Power
96kw
109kw
Weight
10000kg
11000kg
Overall Dimension (L×W×H)
11000×3100×3200mm
11000×3400×3200mm
