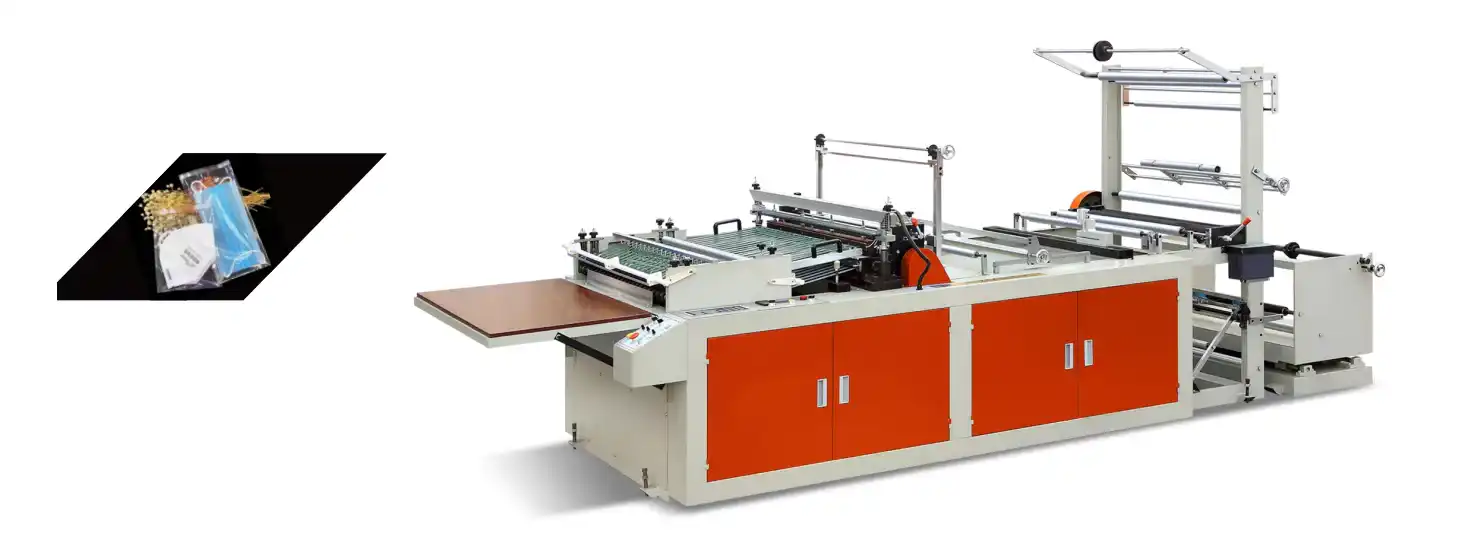

RQL-600-1000 Computer Heat-cutting Bag-making Machine

Main Technical Parameters:

Model
RQL-600
RQL-800
RQL-1000
Length of Sealing and Cutting
999mm
999mm
999mm
Width of Sealing and Cutting
580mm
780mm
980mm
Speed of Bag making
40-198pcs/min
40-198pcs/min
40-120pcs/min
Main Power
1.1kw
1.5kw
1.5kw
Conveyor Motor Power
400w
400w
400w
Step Motor Power
1.1kw
1.5kw
1.5kw
Heating Power
2kw
3kw
4kw
Weight
800kg
1000kg
1200kg
Outline Dimension (L×W×H)
3600×1150×1700mm
3600×1350×1700mm
3600×1550×1700mm
