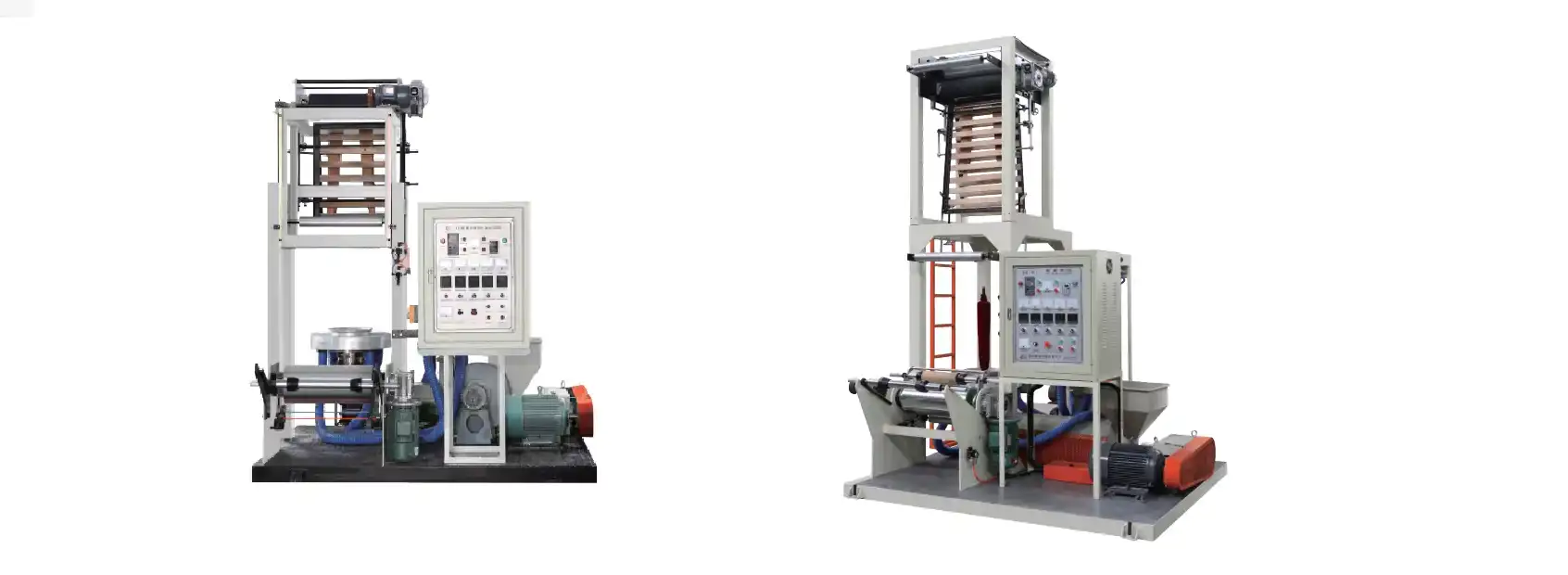

SJ-A Mini Type Film Blowing Machine

Main Technical Parameters:
ModelSJ-A45
Film Width
100-500mm
Film Thickness-HDPE
0.009-0.05mm
Film Thickness-LDPE
0.02-0.15mm
Max. Extrusion Output-HDPE
35kg/hour
Max. Extrusion Output-LDPE
40kg/hour
Screw Diameter
φ45
Screw L/D Length
28:1/30:1
Die Size-HDPE
φ60
Die Size-LDPE
φ100
Roller Width
600mm
Effective Width
500mm
