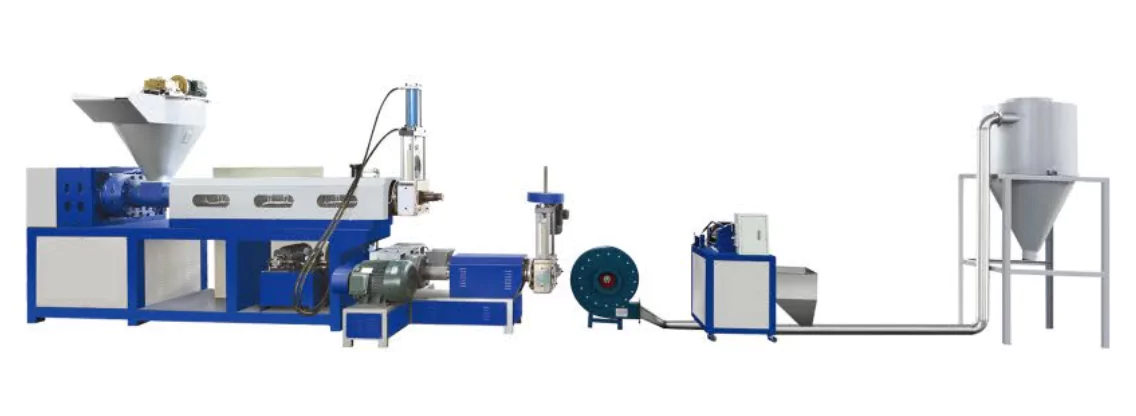

SJ-C100 (110/120/140) High Speed Waste Plastics Regenerative Pelletizer

Main Technical Parameters:

Model	SJ-C100	SJ-C110	SJ-C120	SJ-C140
Diameter of Screw	95mm	105mm	115mm	135mm
L/D of Screw	20:1-22:1	20:1-22:1	20:1-22:1	20:1-22:1
Rational Speed of Screw	10-110rpm	10-110rpm	10-110rpm	10-110rpm
Main Motor Power	22kw	30kw	37kw	55kw
Output	90kg/hr.	110kg/hr.	130kg/hr.	180kg/hr.
Weight	2.1T	2.2T	2.5T	3.5T
Outline Dimension (L×W×H)	5900×1300×2100mm	6000×1350×2100mm	6200×1400×2250mm	8500×1400×2300mm
